Tranquillity Channel Drains

LEARN MORE

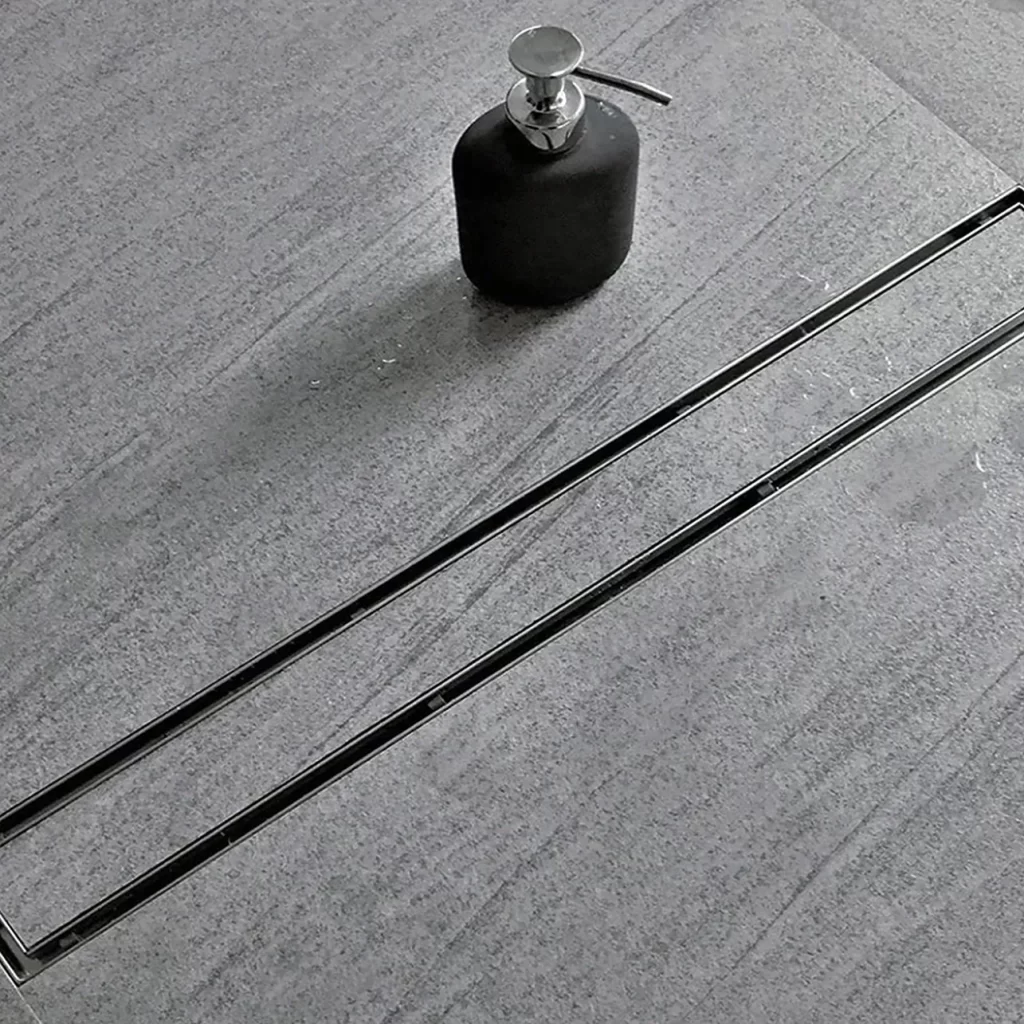

Linear Stainless Steel Shower Drains

The Tranquillity Channel Drain range offers a sleek, high-performance drainage solution designed for contemporary bathrooms, wet rooms and shower installations. Manufactured from premium 316-grade stainless steel with precision engineering and a superior fall to waste,Tranquillity drains combine durable performance with a minimalist aesthetic suitable for tiled floors and linear wet arealayouts

Product Overview

Tranquillity Channel Drains are available in multiple profiles and finishes to suit different design preferences and installation requirements:

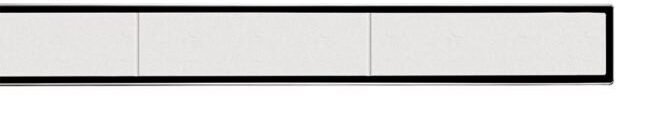

Tile Insert Channel Drains

Tranquillity tile insert channel drains allow tiles to be seamlessly integrated into the grate surface for a concealed, uninterrupted floor finish. The precision machined design ensures consistent drainage and a refined look that complements premium bathroom interiors

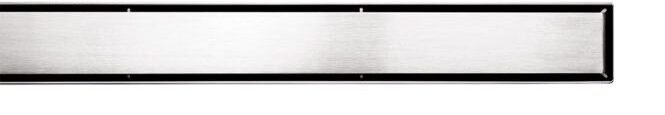

Solid Stainless Channel Drains

The solid stainless channel drain variants provide a striking exposed metal finish in brushed, black, gunmetal or brass tones. Their robust construction and refined geometry deliver efficient water evacuation while enhancing aesthetic appeal.
Enquire Now

Key Features

Manufactured from marine-grade 316 stainless steel for corrosion resistance and long-termdurability.

Superior fall/centre outlet for reliable drainage performance.

Available in multiple lengths and finishes to suit diverse design schemes.

Tile-insert or solid grate options for design flexibility.

Precision engineered for maintenance- free performance.

Suitable for residential and commercial wet area applications.

Why Choose Tranquillity Channel Drains ?

Elegant yet functional

Deliver drainage performance without compromising on aesthetic quality—perfect for contemporary wet room and shower designs where finish details matter.

Durable and corrosion-resistant

316 stainless steel construction ensures lasting performance in wet environments, reducing the risk of staining and corrosion.

Design flexibility

Choose between tile-insert or exposed solid grates, and a range of finishes, to match existing bathroom hardware or bespoke interior themes.

Ease of installation

Engineered for installation with standard plumbing connections and compatible with common waterproofing practices

Available Sizes & Finishes

Marmox Bath Panel – Included Sizes
Style Length (mm) Finish Options
Tile Insert Channel Drain 800 / 1000 / 1200 / 1800 Brushed Stainless, Black, Brushed Brass, Gunmetal
Solid Stainless Channel Drain 800 / 1000 / 1200 Brushed Stainless, Black, Brushed Brass, Gunmetal

Technical Data

Material: 316-grade stainless steel.

Drain outlet: Centre fall configuration for efficient drainage.

Widths: Standard 69 mm channel body typical, varying depths by model.

Finishes: Multiple surface finishes to suit interior design palette.

Tranquility Channel Drain Data Sheet.pdf

Any questions? Enquire now and see how we can help you with your project

Enquire Now

Installation

Tranquillity Channel Drains are designed for integration into tiled wet areas and are installed inaccordance with standard waterproofing and drainage best practice:

Set drain body in place during screed or the Marmoxtile underlay preparation.

Ensure correct fall to outlet and alignment with waste flange connection.

Apply waterproof membrane to drain flange in line with manufacturer guidelines.

Complete floor finish — tiles flush with grate (tile insert models) or directly to exposed grate face.

Connect to plumbing waste as specified by local code

Tranquillity Channel Drain Brochure.pdf

Related products

Marmox Products
Description of the image
Marmox Sloping Boards
VIEW MORE
Description of the image
Marmox Shower Tray System
VIEW MORE
Description of the image
Marmox Multiboards
VIEW MORE
Description of the image

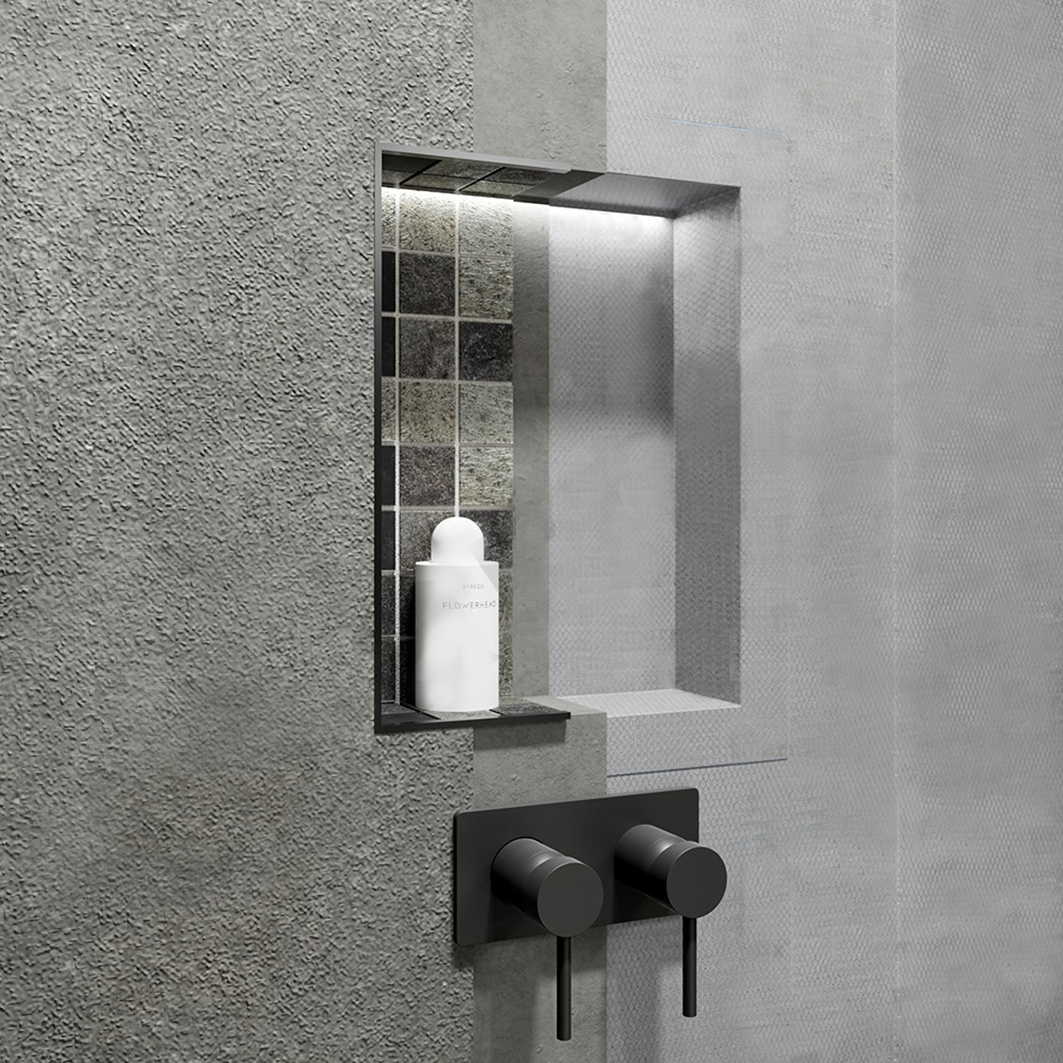

Marmox Niches
