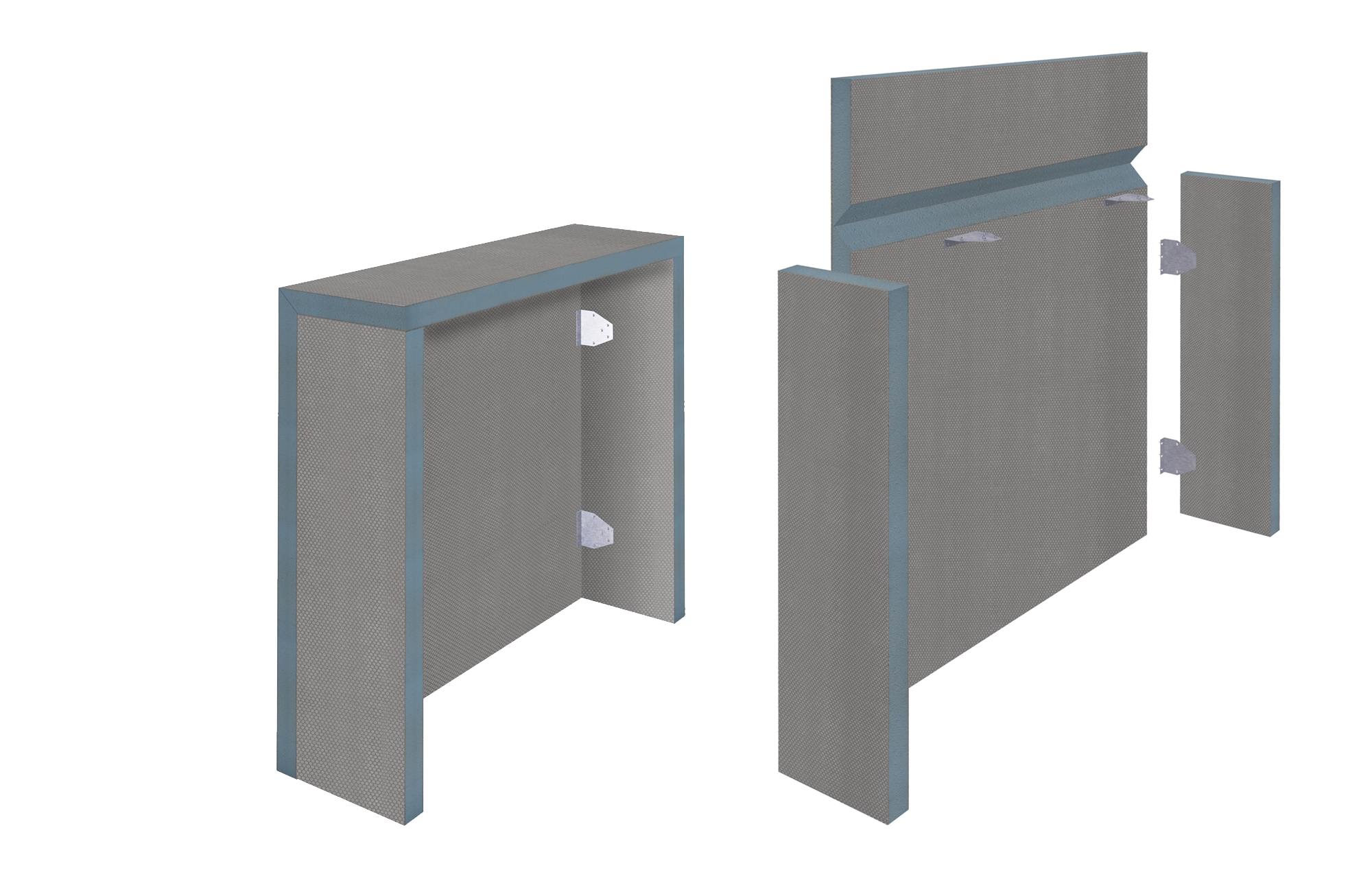

Marmox Toilet Boards & Boxes

Pre-Formed, Tile-Ready Concealed Toilet Enclosures

Marmox Toilet Boxes are pre-formed, waterproof solutions designed for a quick boxing of concealed cisterns, pipework, and services behind wall-hung toilets. Manufactured using an extruded polystyrene (XPS) core with reinforced cementitious coatings, they provide a rigid, tile-ready structure that simplifies bathroom construction. Toilet board is a 20mm predrilled board that can be used to conceal cistern, providing a rigid substrate for tiling.

Designed for modern Australian bathrooms, Marmox Toilet Boxes deliver clean finishes, reduced installation time, and reliable long-term waterproofing.

Key Features

Pre-formed structure for wall-hung toilet installations.

100% waterproof and vapour resistant.

Tile-ready cementitious surface.

Unique honeycomb finish, which increase adhesion to tile adhesives.

Eliminates the need for timber framing , and sheeting.

Light weight and easy to handle.

High compressive strength for tiled finishes.

Thermally insulating XPS core.

Compatible with Australian waterproofing systems.

Why Choose Marmox Toilet Boards & Boxes?

Faster installation

Pre-formed design reduces on-site framing and build time.

Built-in waterproofing

Closed-cell XPS construction prevents moisture ingress and mould.

Clean, professional finish

Creates precise edges and a seamless tiled appearance.

Reliable long-term performance

Delivers durable results in high-use bathroom environments.

Available Sizes

Product	Size
Concealed Toilet Board	1200 mm × 1550 mm × 20 mm (ready to tile)
Concealed Frame Toilet Box Kit	600 mm × 1250 mm ×20mm

Technical Data

Core material: Extruded polystyrene (XPS).

Facing: Polymer-modified cement coating reinforced with fibreglass mesh.

Water absorption: Negligible.

Vapour resistance: High.

Surface: Tile-ready cementitious coating.

Application areas: Wall-hung toilets and bathroom service enclosures.

Any questions? Enquire now and see how we can help you with your project

Enquire Now

Installation

Position toilet box according to cistern and plumbing layout.

Fix using approved Marmox adhesives or mechanical fixings where required.

Reinforce all joints using fibre glass tape and a layer of tile adhesive.

Tile directly onto the cementitious surface.

Integrates with other Marmox systems for a complete waterproof solution.
