Marmox Curved Boards

Flexible, Tile-Ready Boards for Curved Surfaces

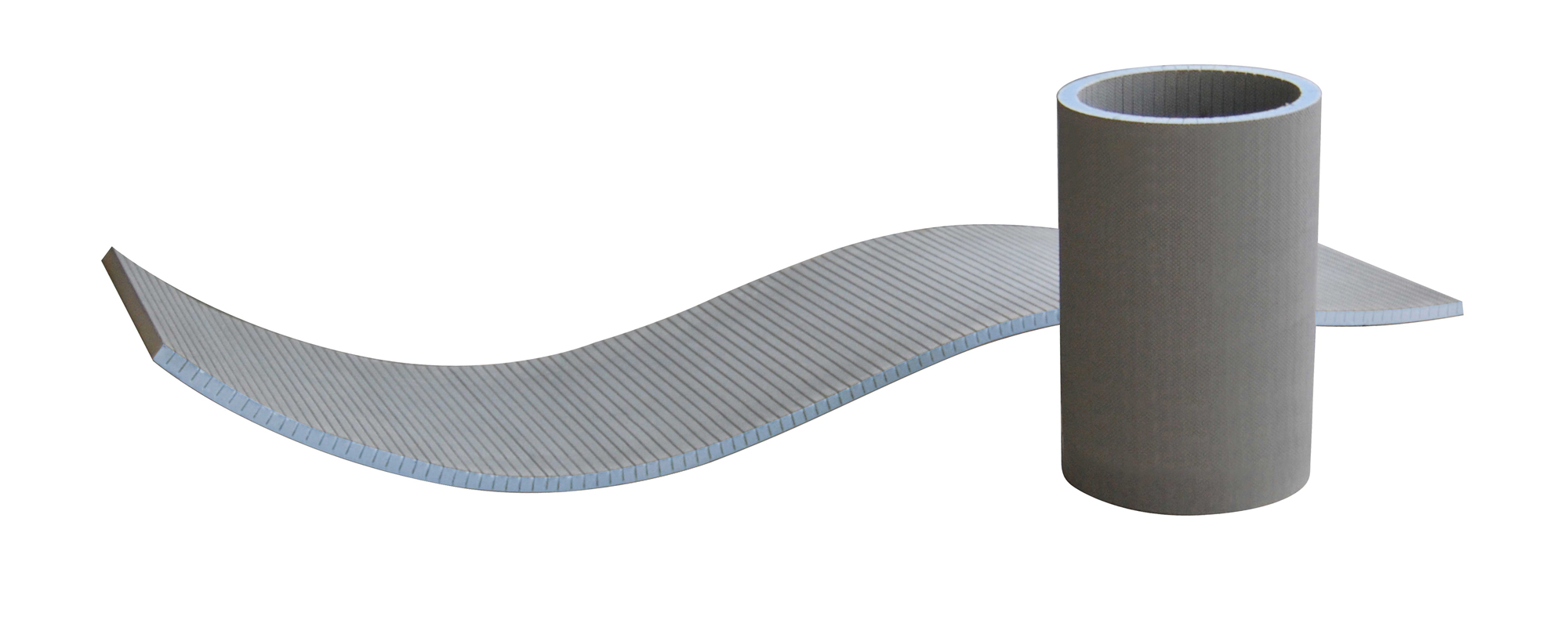

Marmox Curved Boards are flexible, waterproof construction boards designed to form smooth curved walls, columns, and architectural features. Manufactured with an extruded polystyrene (XPS) core and reinforced cementitious coatings, they allow curved designs to be achieved without compromising strength, waterproofing, or tile adhesion.

They provide a tile-ready solution for creating distinctive bathroom and interior designs in both residential and commercial environments.

Key Features

Flexible board design for curved applications.

100% waterproof and vapour resistant.

Can form curves as tight as 200mm radius.

Can be tiled or rendered on both sides.

Unique honeycomb surface, which increase adhesion to render and tiles adhesives.

Can be used internally and externally.

Tile-ready cementitious surface.

Lightweight and easy to shape and install.

Maintains strength when formed to curves.

Thermally insulating XPS core.

Compatible with Australian waterproofing systems.

Suitable for residential and commercial use.

Why Choose Marmox Curved Boards?

Design flexibility

Enables curved walls and architectural features with ease.

Built-in waterproofing

Closed-cell XPS core prevents moisture ingress and mould.

Clean, tiled finish

Provides a stable, tile-ready surface for curved applications.

Consistent, long-term performance

Maintains durability and waterproof integrity over time

Available Sizes

Dimensions Table

Orientation	Dimensions (mm)	Thickness (mm)
Longitudinal	600 × 2500	20
Transverse	600 × 1250	30

Technical Data

Core material: Extruded polystyrene (XPS).

Facing: Polymer-modified cement coating reinforced with fibreglass mesh.

Water absorption: Negligible.

Vapour resistance: High.

Surface: Tile-ready cementitious coating.

Application areas: Curved walls, columns, wet areas, and feature elements.

Externally curved rendered or tiled surface.

Any questions? Enquire now and see how we can help you with your project

Enquire Now

Installation

Curve boards inwards so the cuts always close tighter.

Fix boards using a continuous bed of flexible tile adhesive.

Suitable for curved surfaces with a minimum radius of 200 mm.

Fix boards to a framed structure at 200 mm centres using screws and washers.

Position screws vertically at 300 mm centres.

If tiling or rendering on the cut surface fibreglass mesh to be fixed to the cut surface.

Seal all joints and transitions with Marmox Waterproofing tape or joint sealant.

Apply tiles or finishes directly to the board surface.
